Scoreboard with 5 digit Large Numeric and Flex Matrix (48Hx60W)

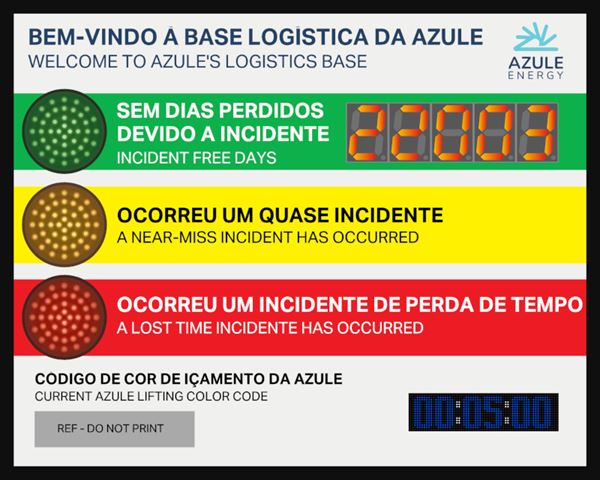

48"h x 60"w Scoreboard Sign with 8" Stoplights, 5" 5 Digit Digit Display and 2 panel 4" Flex Matrix Display
Part number: 4860-1X2-1F5-RYG
Manufacturer: Cousign
*
What should your sign look like?
NOTE:
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
*
How would you like to control your sign? Help me choose.
*
How would you like to mount your sign?
NOTE:
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
*
How would you like to proof your sign?
NOTE:
Let us know how much help you want with this design.
Help me choose.
Configured Link
$2,421.00
$ 1,902.00

Scoreboard with 8" Stoplights, Large 5 digit Counter and 2 panel 4" matrix display (48x60)

Display Components Details
5 Digit Display with 5 inch digits

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe hours worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

By default these displays use only the decimal point, but the full comma can be enabled or disabled by setting a jumper on the back of the displays.

Stoplight Indicator - Red (8 inch)

Red StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.





Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Stoplight Indicator - Yellow (8 inch)

Yellow StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Stoplight Indicator - Green (8 inch)

Green StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Flex Matrix 16x64 Pixel Indoor Display

Flex matrix with two panels.  Versatile display whch can be a counter, clock, calendar, timer, or text display

For complete details please see our Flex Matrix operating instructions.

More digits than a single panel.  Count to 1999999 with largest font.  Larger numbers will display in smaller fonts.

Font decreases in size to fit larger number

Timer

Clock/Calendar (over 24 different display modes)

Level Gauge

Static Text

Product Specifications
Height 48"
Width 60"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
