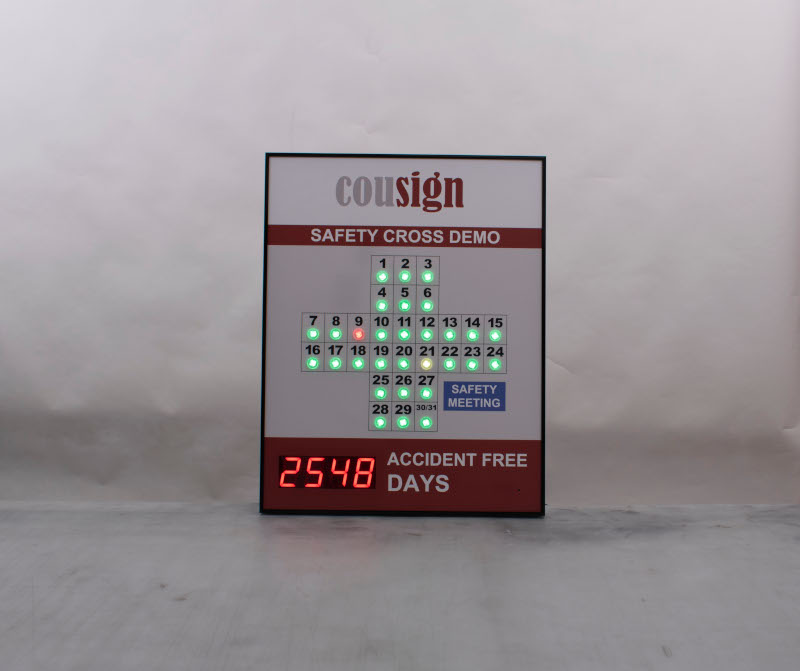

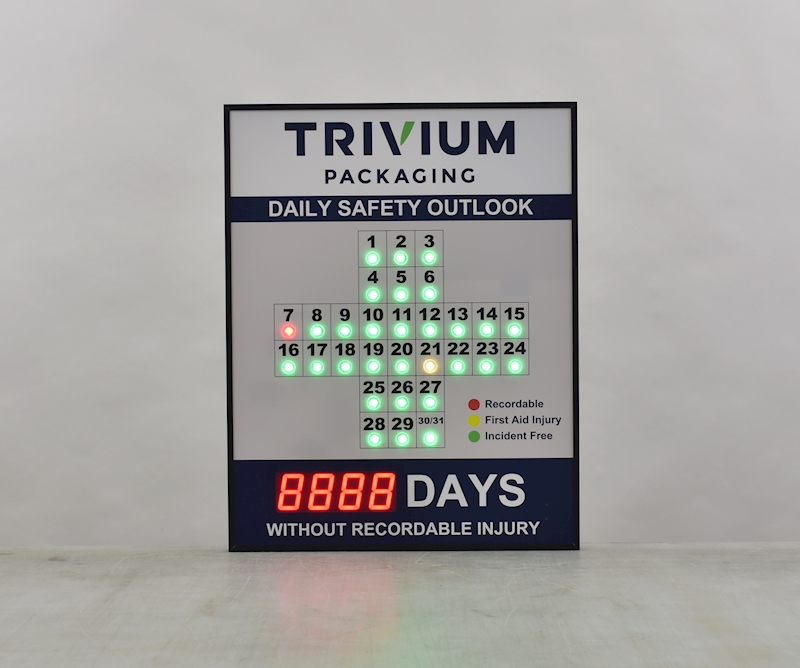

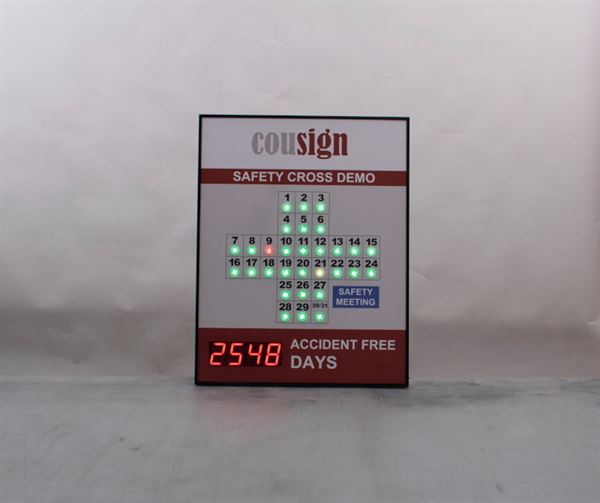

Sign with Small Numeric Counter and Safety Cross (28Hx22W)

28"h x 22"w Safety Sign with One 2.3" Numeric Display and Safety Cross
Part number: 2822-1U-1VM1
Manufacturer: Cousign
What should your sign look like?
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
How would you like to control your sign? Help me choose.
How would you like to mount your sign?
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
How would you like to proof your sign?
Let us know how much help you want with this design.
Help me choose.
How fast should we process your sign?
Standard processing is 15 business days from proof approval.
Help me choose.
Configured Link
$ 620.00

Safety Cross Sign allows you to display a color coded safety status for each day of the month.

Display Components Details
4 Digit Display with 2.3 inch digits

2.3" Numeric Display

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe days worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options
Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

For a walkthrough of how to program your numeric display, check out this video.

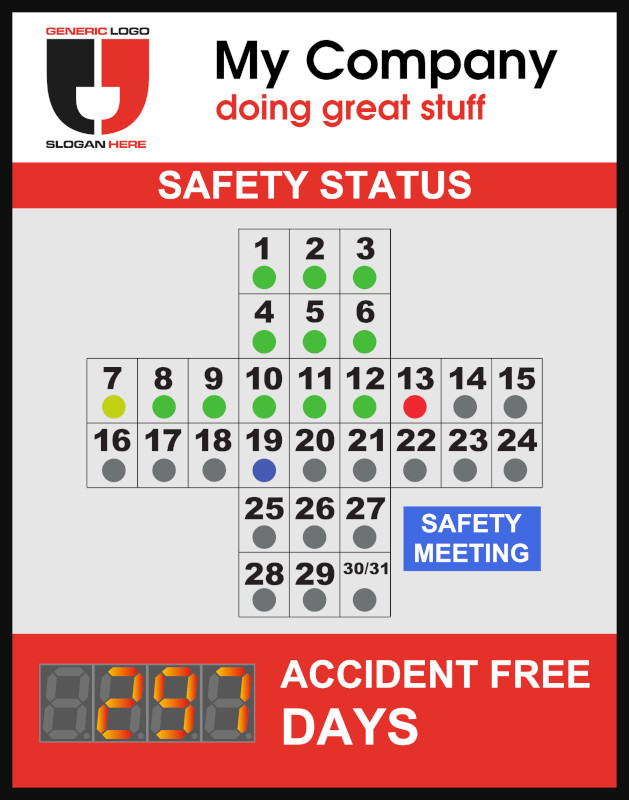

Multicolor Safety Cross with .8" Lights

Safety Cross Component

The safety cross is a special version of the firmware for the multicolor controller that allows up to 30 lights to be controlled in a safety cross pattern. The lights can be set to a color to denote the safety status for the day or denote days of significance in the future such as a monthly or weekly safety meeting. For example, for each incident free day in the current month you can set the light to green. On any day where a near miss occurs the light can be set to yellow and if a reportable accident occurs the light for that day can be set to red. Safety meetings for the month can be denoted in
blue until the end of the day at which point the light can be updated to green/yellow/red to report the safety status.

For operating instructions and more details please see our Multicolor Lights Display support section.

Product Specifications
Height 28"
Width 22"
Sign Face Material Digital Vinyl Print on Clear Lexan
Sign Face Material Digital Vinyl Print on Clear Lexan
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
