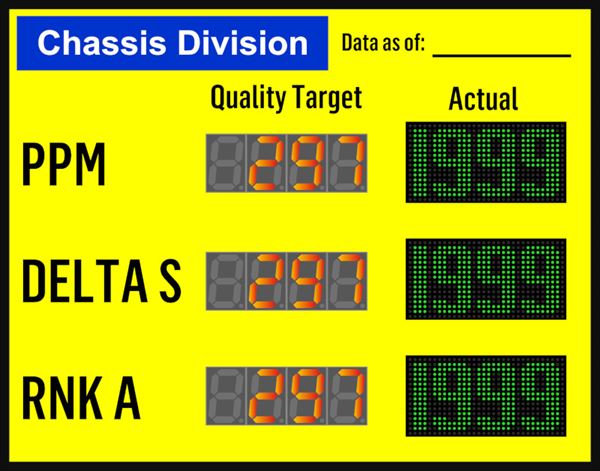

Sign with Three 4" Flex Matrix Panels and 3 Numeric Displays (22Hx28W)

Sign with Three 4" Flex Matrix Panels and 3 Numeric Displays (22Hx28W)
Part number: 2228-3U-3X1
Manufacturer: Cousign
*
What should your sign look like?
NOTE:
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
*
How would you like to control your sign? Help me choose.
*
How would you like to mount your sign?
NOTE:
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
*
How would you like to proof your sign?
NOTE:
Let us know how much help you want with this design.
Help me choose.
*
How fast should we process your sign?
NOTE:
Standard processing is 15 business days from proof approval.
Help me choose.
Configured Link
$1,402.00
$ 1,102.00

Sign with Three 4" Flex Matrix Panels and 3 Numeric Displays (22Hx28W)

Display Components Details
Flex Matrix 16x32 Pixel Indoor Display

Flex Matrix Displays are very dynamic displays that are capable of displaying various types of data in different colors and formats.  Below are some examples of displaying data on this 1 panel display.

For complete details please see our Flex Matrix operating instructions.

Counter Modes configured to show 0-9 as red (bad).  Color and limit are configurable.

Display capable of showing up to 1999 at maximum font size.  Larger numbers will display in smaller fonts.

Large displays of 1999

If needed font size will adjust to display more complex numbers.  Color for text and decimal point configurable.

Decibel Meter (requires addtional sensor)  Allow for differnt colors to be displays based on dB level

Level Gauge

Level Gauge with Label

Temperature Display (requires supported temperature sensor)

Humidty Display (requires supported Temperature/Humidity Sensor)

Static Text Display, can show user entered text.

Larger fonts will cause text to scroll.  Options to allow scrolling left continuously, or bounce text back and forth.

4 Digit Display with 2.3 inch digits

2.3" Numeric Display

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe days worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options
Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

For a walkthrough of how to program your numeric display, check out this video.

Product Specifications
Height 22"
Width 28"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
