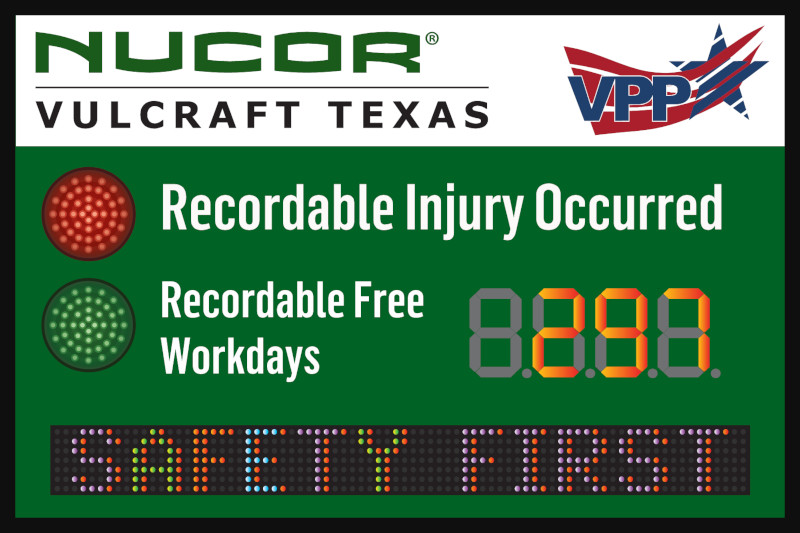

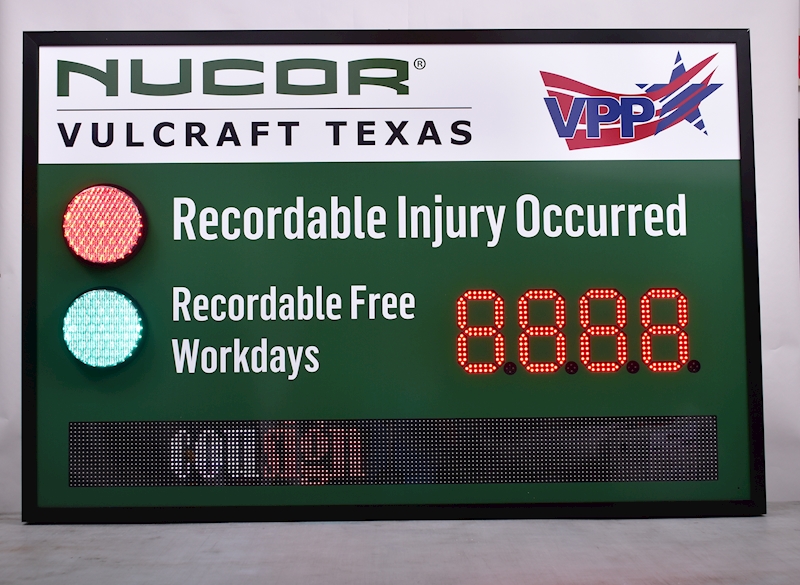

Scoreboard with 8 Inch Counter, Stoplights, and Scrolling Message (48Hx72W)

Scoreboard with 8 Inch Counter, Stoplights, and Scrolling Message (48Hx72W)
Part number: 4872-1J-RGSO2
Manufacturer: Cousign
*
What should your sign look like?
NOTE:
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
*
How would you like to control your sign? Help me choose.
*
How would you like to mount your sign?
NOTE:
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
*
How would you like to proof your sign?
NOTE:
Let us know how much help you want with this design.
Help me choose.
Configured Link
$3,339.00
$ 2,724.00

Scoreboard with 8 Inch Counter, Stoplights, and Scrolling Message (48Hx72W)

Display Components Details
4 Digit Display with 8 inch digits
Outdoor Scrolling Message Sign Half Height

Half Height Large Scrolling Message Display

This outdoor scrolling message sign is brighter and bigger than our standard scrolling message sign.  Instead of an IR remote, the scrolling message sign is programmed using an ethernet connection and software on a connected PC.

Physical Display Area: 320mm x 1600mm  (6.3" x 63")

Resolution DPI: 16 pixels X 160 pixels

NOTE: Ethernet control of the scrolling message is NOT integrated with our network control module.  If you are ordering a network controller with this sign, you will need two ethernet connections to the sign.

BETA TESTERS WANTED: We have recently developed some software upgrades to our integrated network controller that allow it to control these larger displays.  If you are interested in adding integrated network control to your sign at no extra charge and are willing to beta test this new software please let us know.

Stoplight Indicator - Red (8 inch)

Red StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.





Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Stoplight Indicator - Green (8 inch)

Green StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Product Specifications
Height 48"
Width 72"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
