Scrolling Message Safety Scoreboard with Two Five Inch Displays (48Hx96W)

48"h x 96"w Safety Scoreboard Sign with four 5" 4 Digit Displays and R/Y/G Stoplights.
Manufacturer part number: 4896-2F-RYGSO
Manufacturer: Cousign
*

How would you like to customize your sign?

*

How would you like to control your sign?
Help me choose.

*

How would you like to mount your sign?
Help me choose.

*

Select a proofing option to let us know how much help to give you with your design.
Help me choose.

*

Standard processing is 15 business days from proof approval.

$3,383.00
$3,258.00

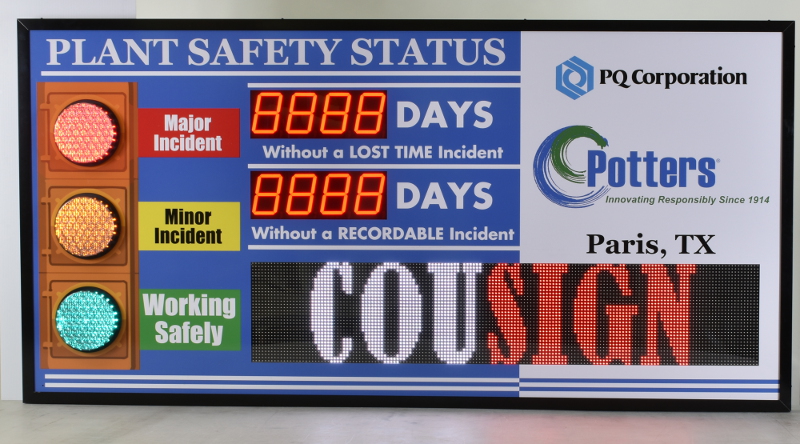

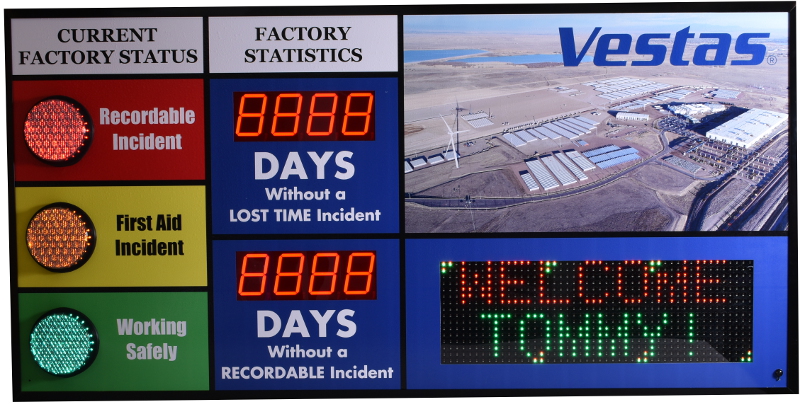

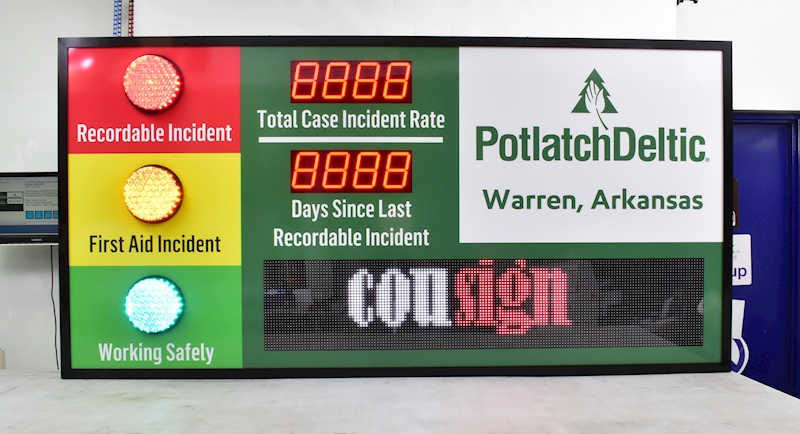

Safety Scoreboard with Two Five Inch Numeric Day Counters, R/Y/H Stoplights and a Large Scrolling Message Scoreboard

**** OUTDOOR SCROLLING MESSAGE SCOREBOARD CURRENTLY IN DEVELOPMENT ****

DO NOT ORDER WITHOUT TALKING TO US FIRST

This sign has it all.  Track two metrics with the large numeric displays, set the stop lights to reflect current warning status, and display customized messages on the scrolling message scoreboard.

Display Components Details
4 Digit Display with 5 inch digits

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe days worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options
Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

By default these displays use only the decimal point, but the full comma can be enabled or disabled by setting a jumper on the back of the displays.

Stoplight Indicator - Red

Red StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.





Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

Stoplight Indicator - Yellow

Yellow StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

Stoplight Indicator - Green

Green StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

Outdoor Scrolling Message Sign

** IN DEVELOPMENT **

This outdoor scrolling message sign is brighter and bigger than our standard scrolling message sign.  Instead of an IR remote, the scrolling message sign is programmed using an ethernet connection and software on a connected PC.

Physical Display Area: 160mm x 1600mm  (6.29" x 63")

Resolution DPI: 16 pixels X 160 pixels

NOTE: Ethernet control of the scrolling message is NOT integrated with our network control module.  If you are ordering a network controller with this sign, you will need two ethernet connections to the sign.

Products specifications
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
Height 48"
Width 96"
