Sign with Six 4" Flex Matrix Panels (22Hx28W)

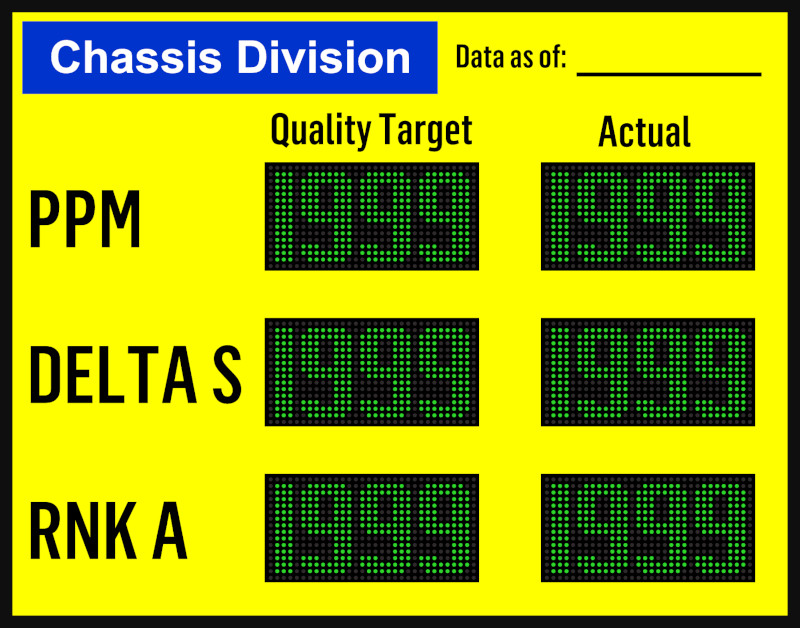

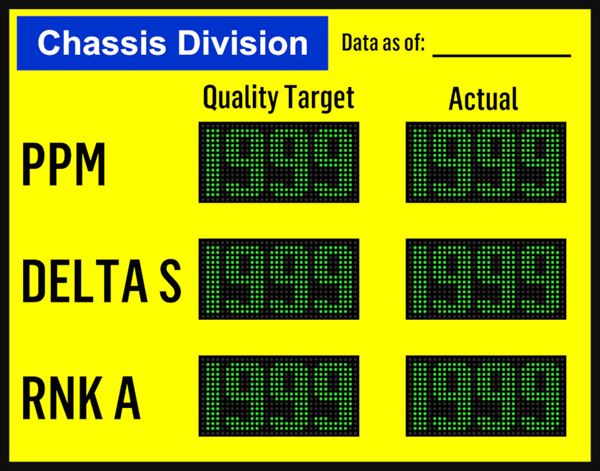

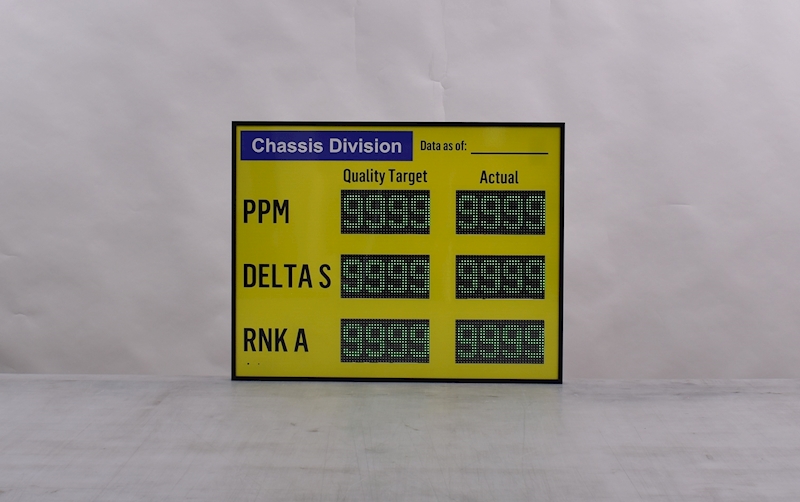

22"h X 28"w Scoreboard Sign with Six 4" Flex Matrix Displays
Part number: 2228-6X1
Manufacturer: Cousign
*
What should your sign look like?
NOTE:
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
*
How would you like to control your sign? Help me choose.
*
How would you like to mount your sign?
NOTE:
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
*
How would you like to proof your sign?
NOTE:
Let us know how much help you want with this design.
Help me choose.
*
How fast should we process your sign?
NOTE:
Standard processing is 15 business days from proof approval.
Help me choose.
Configured Link
$1,402.00
$ 1,102.00

22"h X 28"w Scoreboard Sign with Six 4" Flex Matrix Displays

Display Components Details
Flex Matrix 16x32 Pixel Indoor Display

Flex Matrix Displays are very dynamic displays that are capable of displaying various types of data in different colors and formats.  Below are some examples of displaying data on this 1 panel display.

For complete details please see our Flex Matrix operating instructions.

Counter Modes configured to show 0-9 as red (bad).  Color and limit are configurable.

Display capable of showing up to 1999 at maximum font size.  Larger numbers will display in smaller fonts.

Large displays of 1999

If needed font size will adjust to display more complex numbers.  Color for text and decimal point configurable.

Decibel Meter (requires addtional sensor)  Allow for differnt colors to be displays based on dB level

Level Gauge

Level Gauge with Label

Temperature Display (requires supported temperature sensor)

Humidty Display (requires supported Temperature/Humidity Sensor)

Static Text Display, can show user entered text.

Larger fonts will cause text to scroll.  Options to allow scrolling left continuously, or bounce text back and forth.

Product Specifications
Height 22"
Width 28"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
