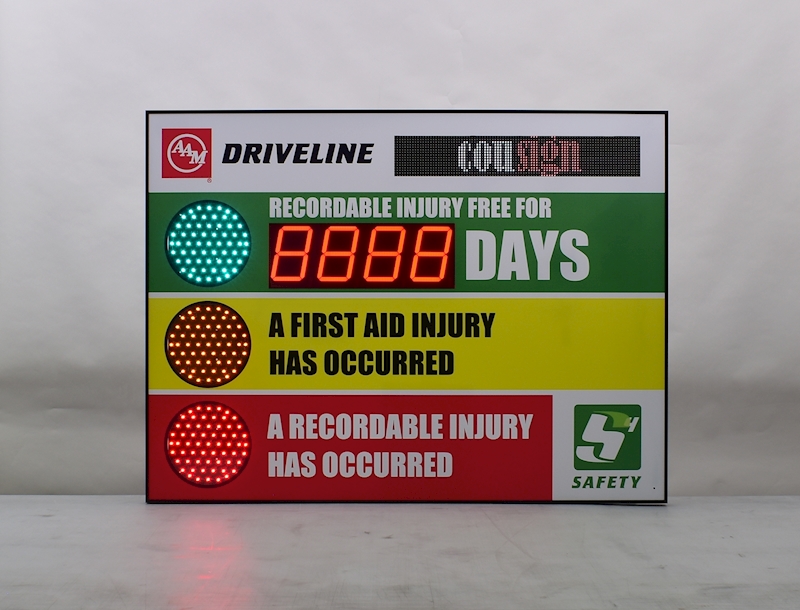

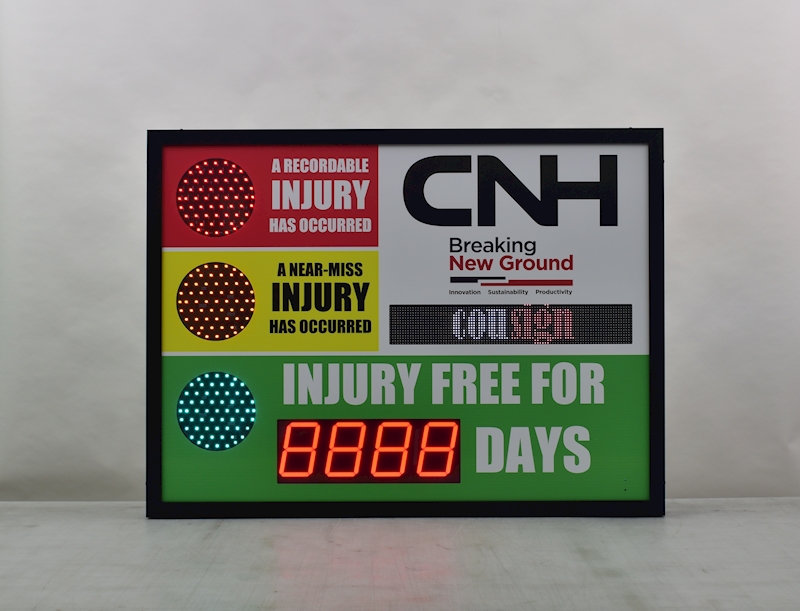

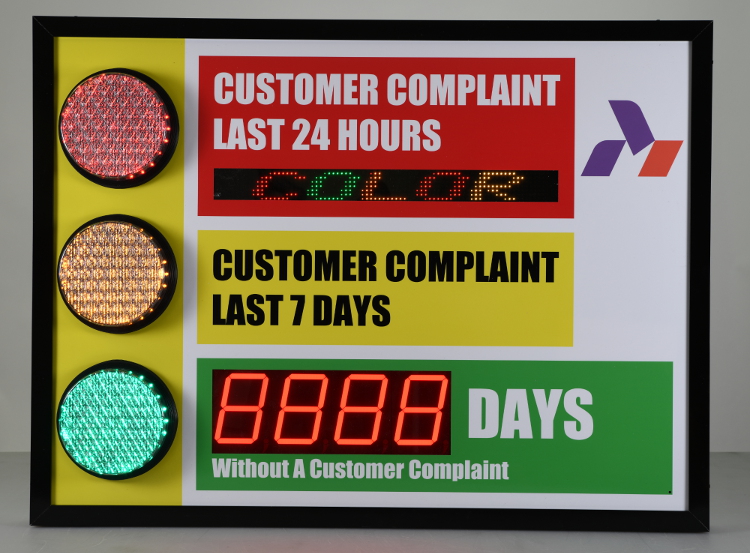

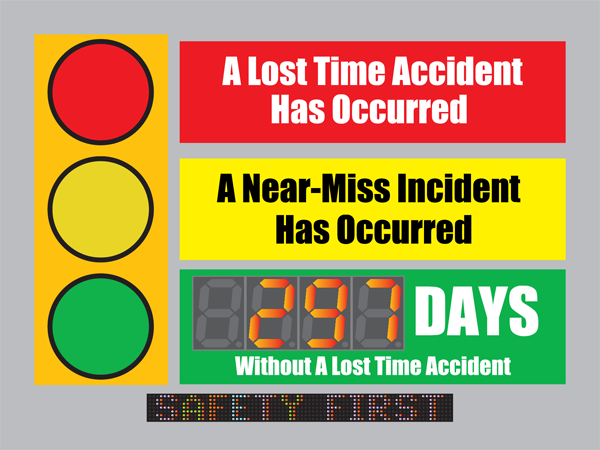

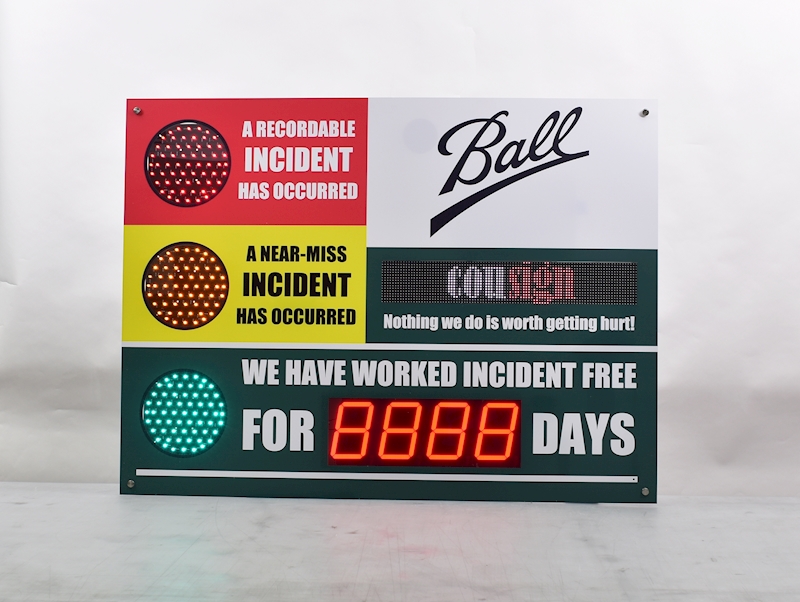

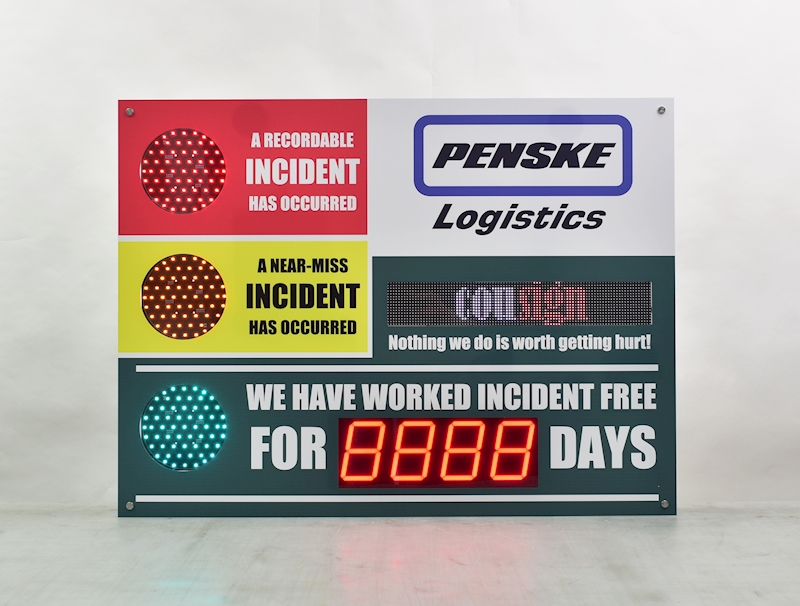

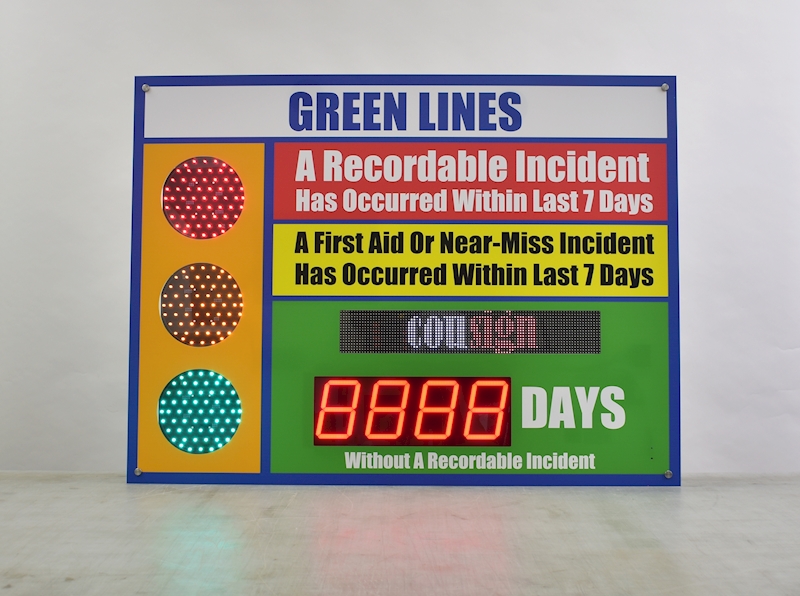

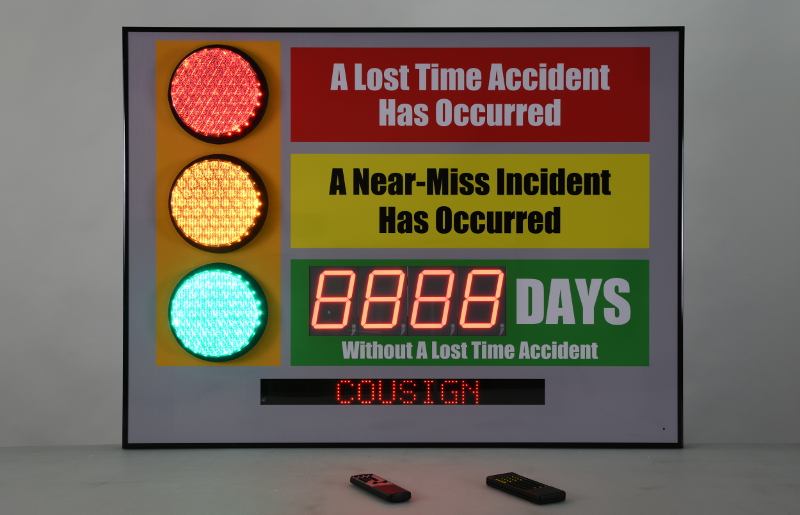

Stop Light Sign, Large Display, Scrolling Message (36Hx48W)

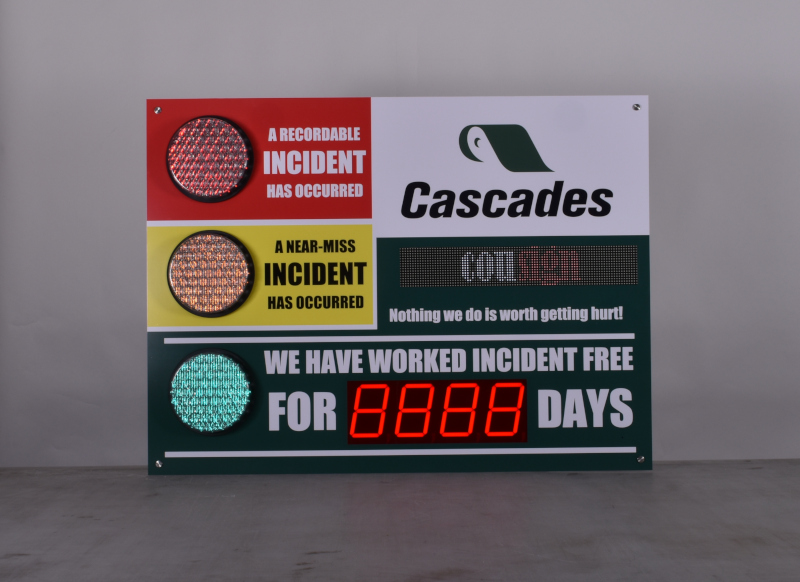

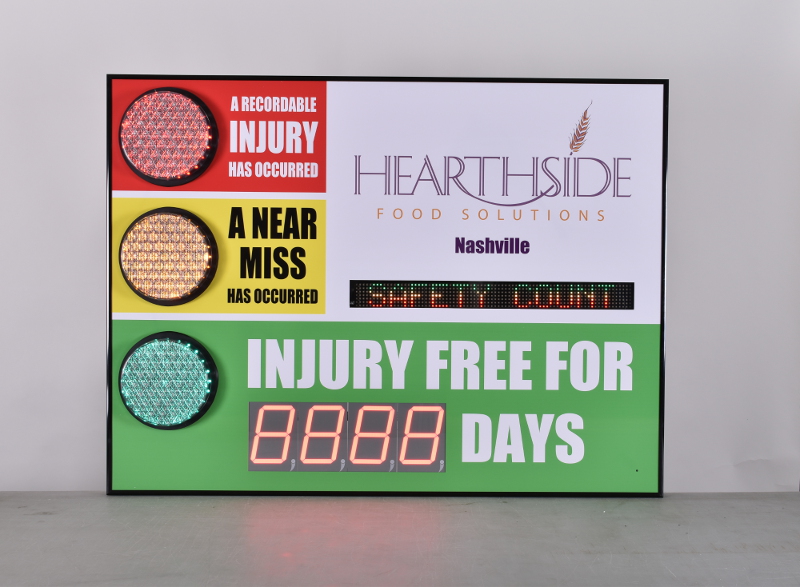

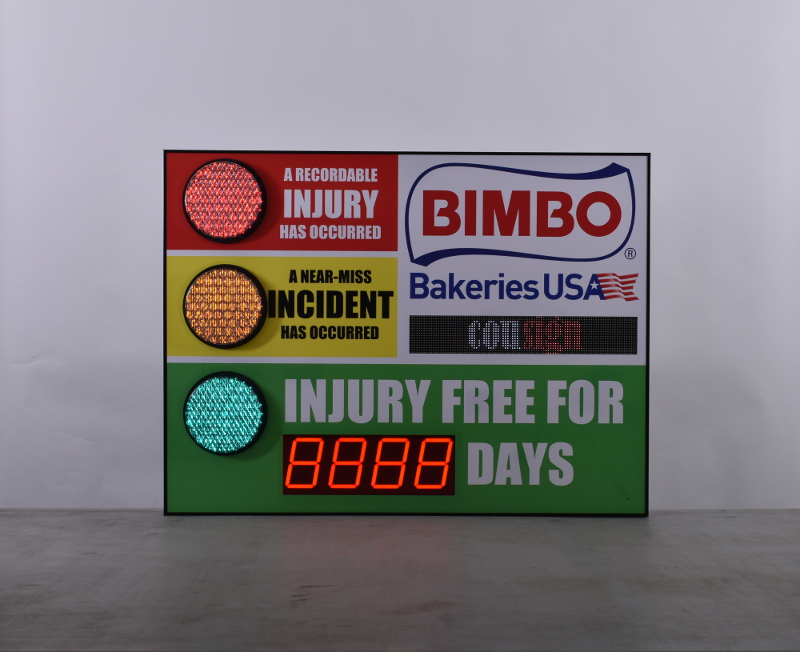

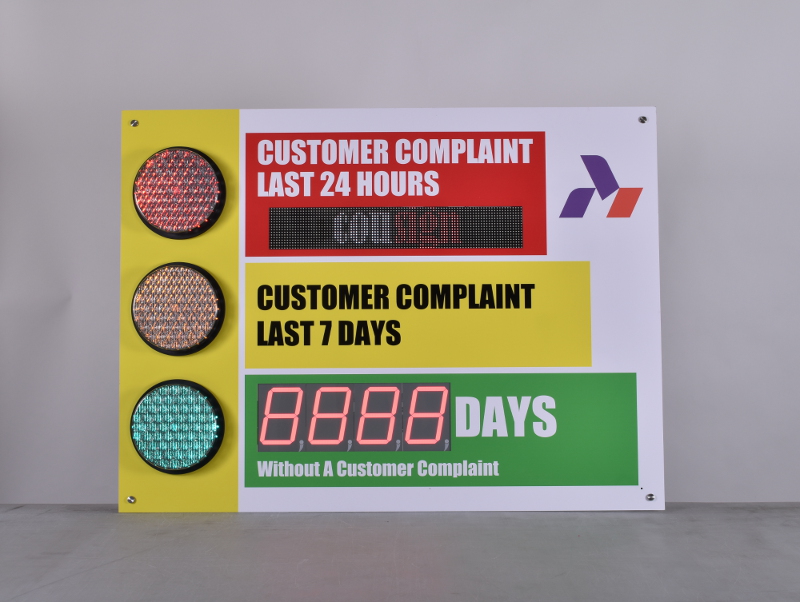

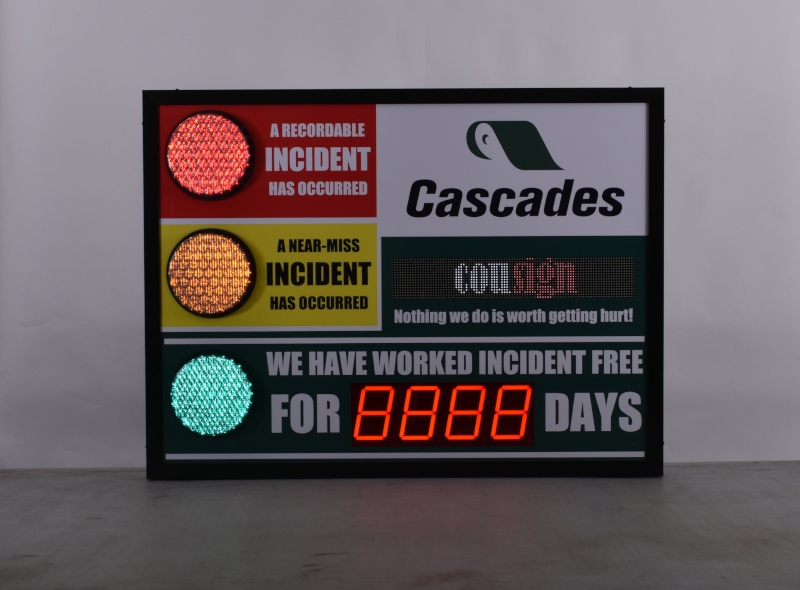

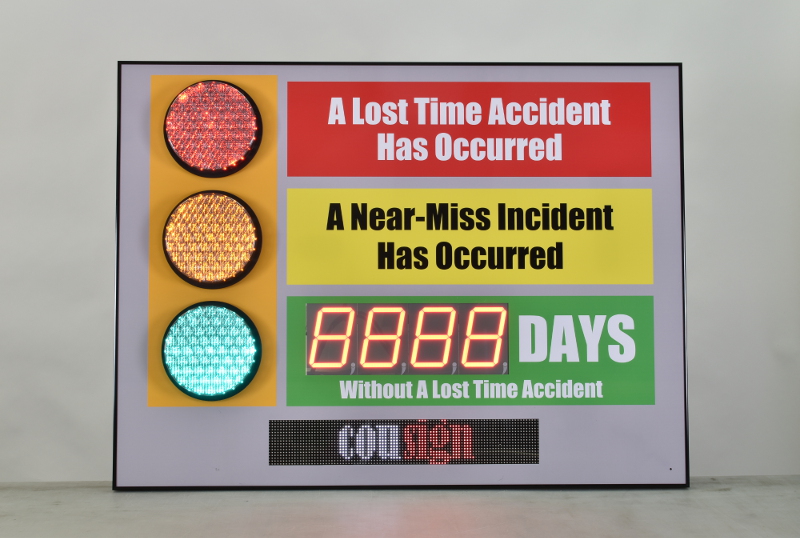

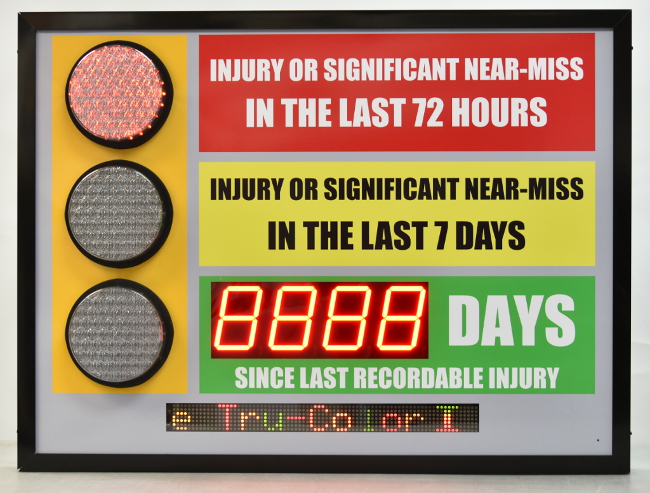

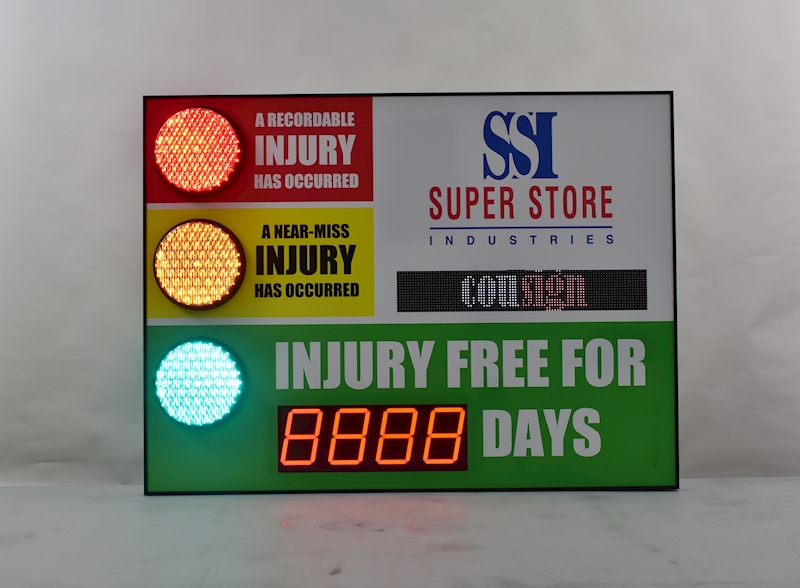

36"h x 48"w Days Without an Accident Sign with One 5" Day Counter, Scrolling Message, and Red/Yellow/Green Stoplights
Part number: 3648-1F-RYGS3P
Manufacturer: Cousign
*
What should your sign look like?
NOTE:
We will not print your sign until you have approved a print ready proof for production so feel free to order a partially completed or generic design and follow up with us about changes you need to make.
Help me design.
*
How would you like to control your sign? Help me choose.
*
How would you like to mount your sign?
NOTE:
Wall plugable power supplies are provided with indoor mounting options. Outdoor enclosures contain hardwire power supplies and require a licensed electrician for installation.
Help me choose.
*
How would you like your lights mounted?
NOTE:
Front Mounting was standard prior to June 2021
Help me choose.
*
How would you like to proof your sign?
NOTE:
Let us know how much help you want with this design.
Help me choose.
*
How fast should we process your sign?
NOTE:
Standard processing is 15 business days from proof approval.
Help me choose.
Configured Link
$1,976.00
$ 1,553.00

Stoplight Safety Scoreboard Sign with Large Display and Scrolling Message

Stoplight days without an accident sign with 5” counter.  Track safe days worked and signal your current safety status with red, green, yellow lights flashing or solid.

Dare to be aware.

Leadership should share the accountability and success of any safety program by getting employees involved in improving and maintaining the safety culture.  What better way to help with this than by mounting an attention grabbing safety stoplight sign with bright red, yellow and green stoplights.  This 36" high by 48" wide safety scoreboard includes one five inch counter and three 8" super bright stoplight style lights.  The counter will automatically display your current days without a lost time accident and the stoplights can be used to signal that an accident has occurred (red), a near miss has occurred (yellow), or green for no issues.

Display Components Details
4 Digit Display with 5 inch digits

5" Numeric Display

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe days worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options
Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

By default these displays use only the decimal point, but the full comma can be enabled or disabled by setting a jumper on the back of the displays.

For a walkthrough of how to program your numeric display, check out this video.

Stoplight Indicator - Green (8 inch)

Green StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Stoplight Indicator - Red (8 inch)

Red StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.





Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Stoplight Indicator - Yellow (8 inch)

Yellow StoplightWe source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.

Configurability
9 levels of brightness
Set Light On, Off or Flashing
Three
different flashing speeds

For a walkthrough of how to program your stoplight, check out this video.

Scrolling Message P6 16x96

Full Color Scrolling Message Display

Our full color scrolling message solution was developed in house and is fully compatible with our control options.

This display is powered by our network controller so for optimal results your sign will need to be connected to your company network.  If third party devices are not permitted on your network, a laptop can be directly connected to the sign in order to make updates to the messages.  Critical functionality for managing messages is also available directly from the IR remote control, but this method is not as easy, lacks control over certain features, and is therefore recommended only in situations where the first two options are not possible.

For more information please see our operating instructions and overview video.

Display size is roughly 3.75" x 22.75"

Benfits of this solution

Your sign will be upgraded with our network controller for no extra charge!

16Hx96W pixel full color display

Compatible with network control and IR remote.

Easily update messages from your desktop or phone browser

Schedule messages to play only on certain days, times of the day, or during a certain date range

Add dynamic text to your messages such as a "days since", "current time/date", "total hours since", etc

Play any full color animated gif's on the display

Product Specifications
Height 36"
Width 48"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
