Traffic Light Scoreboard (36Hx24W)

36"h X 24"w Traffic Light Scoreboard with Four 2.3" Counters and 4 sets of 4" Red/Green Stoplights
Manufacturer part number: 3624-4U-4R4-4G4
Manufacturer: Cousign
*

How would you like to customize your sign?

*

How would you like to control your sign?
Help me choose.

*

How would you like to mount your sign?
Help me choose.

*

Select a proofing option to let us know how much help to give you with your design.
Help me choose.

*

Standard processing is 15 business days from proof approval.

$2,132.00
$1,675.00

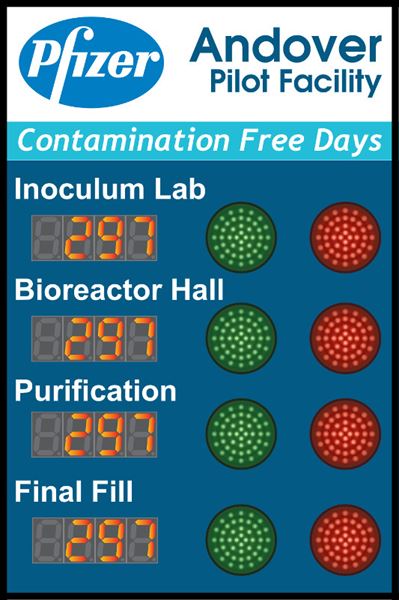

Traffic Light Scoreboard

Four sets of 4" reg/green lights that are controlled just like our 8" stoplights and four 2.3" numeric displays.

Display Components Details
4 Digit Display with 2.3 inch digits

With so many programming options you can make this counter display just about anything.  The most common use for this counter is to track safe days worked, but we've had people use this counter to track days until a project deadline, number of environmental incidents, static price display, and many more. The logic is simple.  Tell the sign how often you want to count, what direction to count, and how much to count by each time it counts.  Then simply set a current count, and the counter will begin following your instructions.  The configuration is stored in flash memory so if the power goes out, you won't need to reconfigure it.

Programming Options
Count up or count down or turn automatic counting off and the display will only show the number you set it to. Set the brightness level from dim to blinding (5 levels of brightness). Count action can be configured to occur every second, minute, hour, day, week, or month. Limit counting to certain days.  For example you might only want to count Monday to Friday and not count on weekends. Configure the display to count by any number from 1 to 99 and each time the counter counts it will increment or decrement by that number. Decimal point location can be set to light the decimal point at any location

Red Light 4inch

We source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.



Configurability 9 levels of brightness  Set Light On, Off or Flashing Three different flashing speeds

Green Light 4inch

We source each of these LED stoplight modules from a traffic signal company so each is 8" in diameter and very visible!  The lights are controlled with our own stoplight controller module which allows you to set each light to on off or flashing.  All control methods are supported by this controller so you can configure the light manually with a pushbutton on the controller, with the IR remote, or via our network controller board.



Configurability 9 levels of brightness  Set Light On, Off or Flashing Three different flashing speeds

Products specifications
Height 36"
Width 24"
Sign Face Material Digital Vinyl Print on Clear Lexan
Power Supply UL 120V (Wall Adapter with 6' cord) or direct wire depending on mounting option selected.
Control Options Manual, IR Remote, Network
Programmability Count up, down, or use as static display. Control decimal point location. Count only on specific days (ex. Monday-Friday)
